Draw ray diagrams to show the formation of ...

CBSE Class 10 Science 2017 Outside Delhi Term II Set 2 Paper

Question : 11 of 12

Marks: +1, -0

Draw ray diagrams to show the formation of three times magnified (a) real, and (b) virtual image of an object by a converging lens. Mark the positions of

O, F

and

2 F

in each diagram.

Solution:

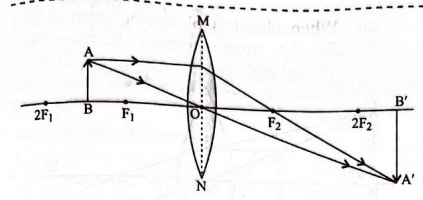

(a) For real image : To get three times magnified image, the object is placed between

F_1 \& 2 F_1

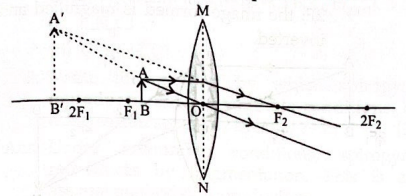

(b) For virtual image : To get three times magnified image, the object is placed between the

F_1

and optical centre

O
