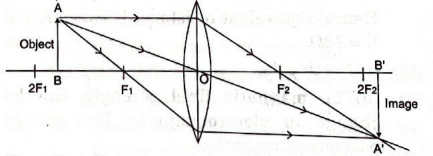

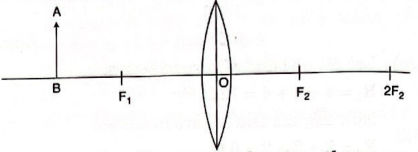

An object $A B$ is placed between $2 F_1$ and $F_1$ on the principal axis of a convex lens as shown in the diagram: Copy the diagram and using three rays starting from point $A$, obtain the image of the object formed by the lens.
