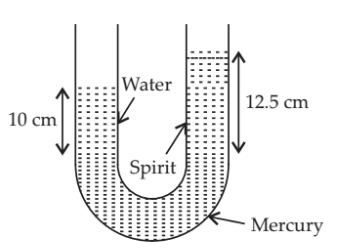

A U-tube contains water and methylated spirit separated by mercury.
The mercury columns in the two arms are in level with 10.0 cm of water in one arm and 12.5 cm of spirit in the other. What is the specific gravity of spirit?
Solution:
Here, for water column in one arm of U-tube :
h1=10.0 cmh_{1}=10.0\ \text{cm}
ρ1=1 g cm3\rho_{1}=1\ \mathrm{g\ cm}^{-3}
For spirit column in other arm of U-tube,
h2=12.5 cmh_{2}=12.5\ \text{cm}
ρ2=?\rho_{2}=?
If P1 and P2P_1\ \text{and}\ P_2 be the pressures exerted by water column and spirit column respectively,
Then P1=h1ρ1g(i)\text{Then }P_{1}=h_{1}\rho_{1}g\ldots(i)
and P2=h2ρ2g(ii)\text{and }P_{2}=h_{2}\rho_{2}g\ldots(ii)
Also as the mercury columns in the two arms of U-tube are at the same level, thus in equilibrium,
P1=P2P_{1}=P_{2} or h1ρ1g=h2ρ2gh_{1}\rho_{1}g=h_{2}\rho_{2}g
Now specific gravity of spirit
=density of spirit density of water = \text{density of spirit}\text{ density of water }
=0.8 g cm31 g cm3=0.800= \frac{0.8\ \mathrm{g\ cm}^{-3}}{1\ \mathrm{g\ cm}^{-3}}=0.800.
