Question : 22 of 30
Marks:
+1,
-0

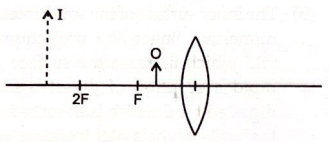

The diagram given below shows an object and its image .
Without actually drawing the ray diagram, state the following :(i) Type of lens (Converging/Diverging)(ii) Name two optical instruments where such an image is obtained.(iii) List three characteristics of the image formed if this lens is replaced by a concave mirror of focal length ' ' and an object is placed at a distance ' ' in front of the mirror.

Solution:
(i) Converging.(ii) (a) Simple Microscope.(b) Magnifying Glass(iii) The image formed will be behind the mirror, enlarged, virtual and eract.
